Marktronic Markmate

The smallest table-top dot marking machine marks almost all plastics and metals.

Group 1940 5000

The Marktronic Markmate is the newest member of our range of dot marking machines. This easy to use dot marking machine allows you to mark almost any work- piece.

Whether plastic or hardened metals (up to 62 HRC or 800 VHN), this machine will allow you to clearly and directly mark your workpieces with serial numbers, drawing numbers or product data. The device is ope- rated via an LCD screen or a computer.

Test run functions and password protection ensure that workpieces will be correctly marked and that the relevant marking layouts can
only be changed by people with the correct authorisation.

Naturally, the Markmate is manufactured pursuant to current CE, EMC and LVD standards and in accor- dance with DIN 9001.

Technical data:

Marking head

• 100 x 100 mm marking field
• font height from 0.18 mm to 75 mm
• marks 2 characters per second with a font size of 2.5 mm
• electric solenoid
• various stylus lengths G variable marking force

Controller & software

• compact tower housing
• high definition LCD screen
• shift and batch counter
• automated time and date
• serial numbering
• simple logo generator
• sheet marking
• RS 232 interface
• test run function

Operational requirements

• 230 V or 110 V 50-60 Hz (single phase)
• no pneumatics required
• ambient temperature during operation 0° – 50° C

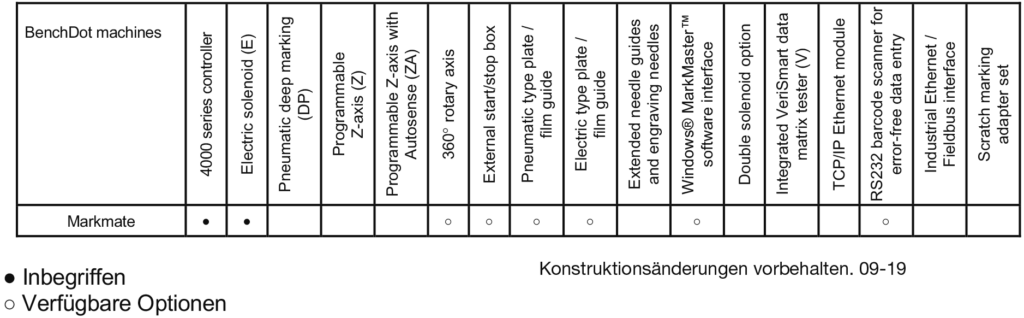

Optional extras

• Start / stop box
• various magnetic tables
• T-groove table
• customised additions on request

Markmate USB PHF circumferential fixture included

The MARKMATE dot marking machine is available in various different versions:

• Controller with display:
• Standard version – (as described on the first page, electro-mechanical)
• PHA version – extra high strike distance (up to 12 mm from workpiece without affecting marking depth)
• PHF version – particularly high marking speed (same as Standard version, but with pneumatic rather than electro mechanic drive)

Computer (not included) with Windows software:

• USB basic version – (the key functions are activated in the software)
• USB advanced version (all functions are activated in the software e.g. Windows fonts and database interface)
• USB PHA version – extra high strike distance (up to 12 mm from workpiece without affecting marking depth)
• USB PHF version –particularly high marking speed (same as Standard version, but with pneumatic rather than electro mechanic drive)

MARKMASTER Windows software
The universal MARKMASTER Windows software for our dot marking machines and laser marking devices com- bines a personal computer processing power with our high quality marking devices. Texts, logos or codes can be easily dragged and dropped in the right position using the mouse. The complete layout can then be saved on the hard drive. The various modes in the software mean that it can be used to control multiple devices.

Some key features of the MARKMASTER software:

• true type fonts
• WYSIWYG preview
• drag and drop relocation of elements
• real time, real date, shift coding
• data matrix code, bar code
• logos (.HPGL / .DFX / .BMP / .JPG)
• multilingual software

On request we can demonstrate this machine to you. Do not hesitate to contact us.
